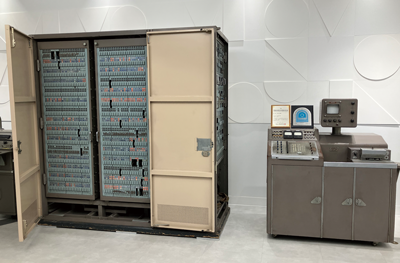

NEAC-2203

NEAC-2203

NEAC-2203



Manufactured in 1961
Manufactured by NEC Corporation
Owner Tokai University
Location of historical materials Tokai University 4-1-1, Kitakaname, Hiratsuka, Kanagawa, 259-1292, Japan
Visitor information Not open to the public
Contact Office of the Chancellor Tel.+81-463-58-1211
https://www.u-tokai.ac.jp/


NEC Corporation (NEC) developed the NEAC-2203 transistor computer based on the NEAC-2201 with the aim of achieving practical business processing, and delivered the first machine in May, 1959. In the exhibition of the AUTOMATH (AUTOMATH: International Conference on Information Processing sponsored by Unesco) that had been held in Paris in June, 1959, NEC exhibited NEAC-2201 and provided public demonstration for the first time as a commercial transistor computer in the world. Though vacuum tubes were used for the clock oscillator and the power supply and the peripheral circuitry of the magnetic drum unit in NEAC-2201, all these vacuum tubes are replaced with the transistors in NEAC-2203, and NEC added a floating point arithmetic mode besides a fixed point mode. The memory was composed of the hierarchy of three layers of magnetic core memory (240 words), high-speed magnetic drum (2,000 words and 10,000 rotations/minute), and magnetic drums (10,000 words , 1,500 rpm , up to 10 drums). NEAC-2203 development was oriented towards EDPS (Electronic Data Processing System), and developing efforts were focused on peripheral equipment and their control units. Card readers, card punches, line printers, and magnetic tape units, etc. were developed and connected.

NEAC-2203 had interrupt functions, and was able to execute three programs by timesharing, so it was able to execute an operation of I/O and an arithmetic operation simultaneously. 30 sets of NEAC-2203 were shipped, and at that time, it was the marvelous number, and NEAC-2203 was used in various fields.
